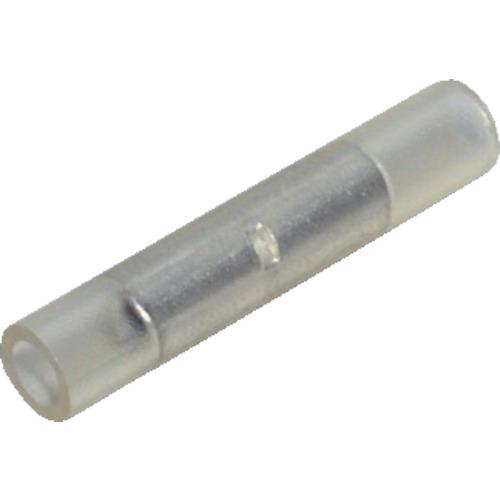

TRUSCO stranded wire 1.04 to 2.63 mm 2B type crimp sleeve with insulation coating 20 pieces

[Features]● Combining insulation coating for butting crimp sleeves.

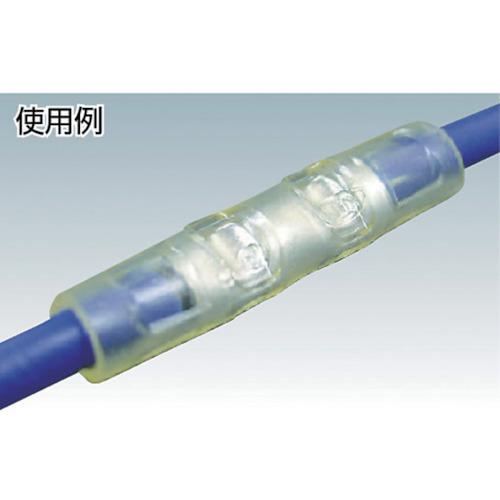

[Applications] ● B-shaped sleeve with insulating coating that crimps and connects wires inserted from both sides of the sleeve.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 1.04 to 2.63 ● Color: Silver ● Total length (mm): 25.5 ● Inner dimension (mm): 2.3 ● L (mm): 25.5 ● JIS standard product : × ● Wire coupling range Single wire mm: - Wire coupling range AWG: 16-14 d (mm): 2.3

[Specification 2] ●B type ●Applicable tools: Crimp terminals with insulation coating, tools for sleeves

[Material/Finish] ●Sleeve: Oxygen-free copper (C1020)/Electrotin plating ●Insulator: Vinyl chloride

[Set contents/accessories]
-

【Note】
-
