TRUSCO Rod type bare crimp terminal with insulation cap length 32.5 (10 pieces)

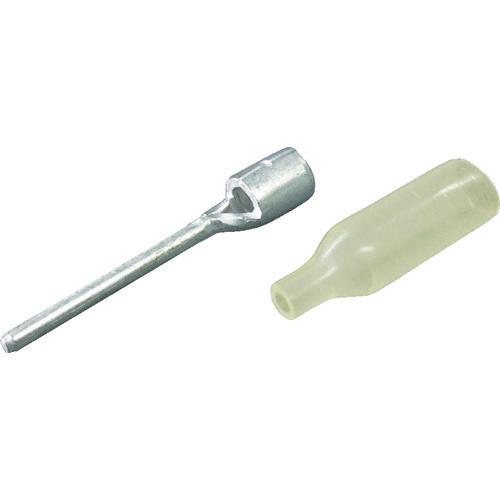

[Features] ● Bare rod terminal and insulating cap are a set.

[Applications] ● For connecting annealed copper strands or single wires.

[Specifications] ● Stud diameter (mm): - ● Color: transparent yellow ● Total length (mm): 32.5 ● Inner dimension (mm): 3.4 ● Wire coupling range Stranded wire ([[MM2]]): 2.63 to 6.64 ● Outside Dimensions (mm): - Wire coupling range Single wire mm: 1.82 to 2.89 Wire coupling range AWG: 12-10 JIS standard product: ×

[Specification 2] Bar-shaped / single-wire compatible type

[Material/Finish] ●Terminal: Oxygen-free copper (C1020)/Electric tin plating ●Insulator: PVC

[Set contents/accessories]
-

【Note】
-
