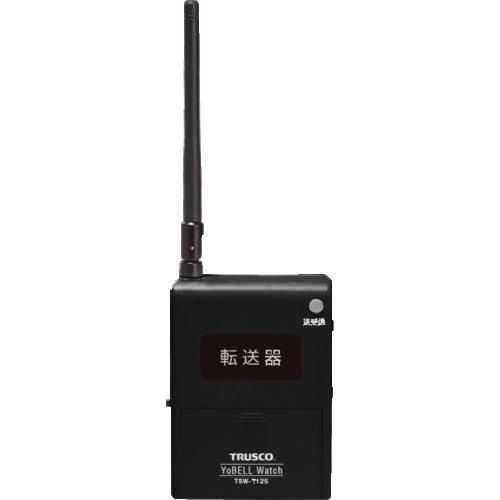

TRUSCO “Yovel Watch” data transmitter with USB cable

[Features]
●When information arrives, you will not miss it because you will be notified by the bodily sensation of vibration.
●Because the information content is displayed in text on the screen, it notifies you of "what happened" instead of "something happened".
●Since messages can be sent and received between wearers using a two-way communication system, wasteful movement within members is prevented and work efficiency is improved.
●Because messages can be read with a wristwatch-type receiver, there is no need to stop the movement of both hands, ensuring work safety and improving work efficiency.
● All communication information can be checked with a dedicated software application, and all recorded information can be used as work improvement data.
●The transfer unit does not have a data memory function. Data can be read only when connected to a PC.

[Use]
●For production line management. For interlocking management of manufacturing equipment. For in-factory notifications and calls.

【specification】
- Total length (mm): 85
Product name: data transmitter
- Width (mm): 62
- Depth (mm): 24
- Accessories: AC adapter
-Dimensions: Length 85mm x Width 62mm x Depth 24mm (excluding antennas and protrusions)

[Specification 2]
Power supply: Battery: AAA Ni-MH battery or AAA alkaline battery x 2 (for emergencies), AC adapter: AC100V IN DC5V OUT 1A with MINI USB
●Frequency used: 429MHz band
●Transmission power: 10mW
-Communication distance: Approximately 170 to 200m in sight
- Mass: about 75g
Waterproof function: None Indoor specifications
●Operating temperature: -10 to 50℃

[Material/Finish]
-Case: Made of BS resin
- Circuit parts: High density glass epoxy resin

[Set contents/accessories]
● Data transmitter body, AC adapter

【Note】
●The communication distance varies depending on the conditions of the place of use.
●The transfer unit does not have a data memory function. Data can be read only when connected to a PC.
