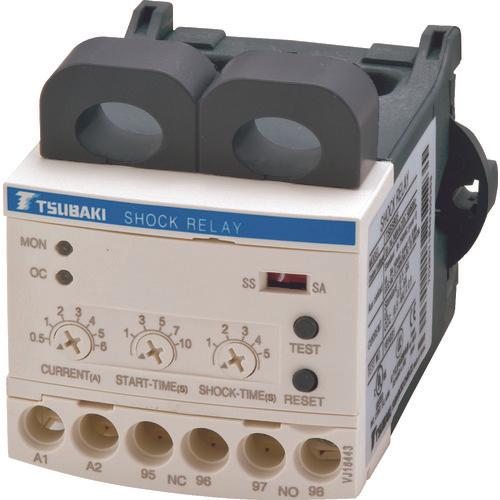

TSUBAKIMOTO CHAIN chain shock relay SB series

[Features]
●This is a current-monitoring control device that quickly detects overcurrent when the motor is overloaded and prevents equipment damage.
● Economy type.
●Wide current setting range.
●Compact CT integrated type.

[Use]
●For elevators and conveyors.

【specification】
- Length (mm): 126
- Width (mm): 66.7
- Height (mm): 148.2
●Applicable motor capacity (kW) 200V class: 45 to 75
● Applicable motor capacity (kW) 400V class: 110 to 132
● Current setting range (A): 30 to 300
●Contact rating: 3A, 250VAC (cosθ=1)
- Contact configuration: 1a1b

[Specification 2]
Operation power supply: 24-240VAC/DC±10% 50/60Hz
●Maximum motor circuit voltage: AC600V50/60Hz
● Start time: 0.2 to 10.0 seconds (0.2 second increments), shock time: 0.2 to 5.0 seconds (0.2 second increments)
●Current detection: 2-phase CT method
- Insulation resistance: 10MΩ or more (DC500V mega)
Protection grade: IP20
● Power consumption: 2.0 W or less
UL/cUL certified product
●CCC certified product
