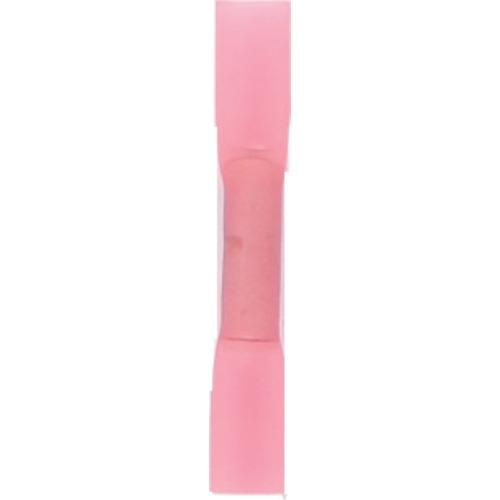

TRUSCO waterproof crimp sleeve (7 pieces)

[Features]●By heating and shrinking the coating with a heat gun or the like after crimping, the tube and wire coating are adhered, providing waterproof and dustproof effects.

[Applications] ●For places where waterproofing, oilproofing, earthquake resistance, dustproofing, etc. are required.

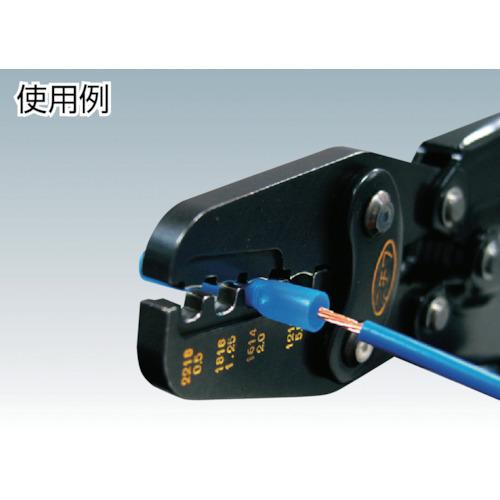

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.75, 1.25 ● Color: red transparent ● Total length (mm): 37 ● Inner dimension (mm): 4.2 ● JIS standard product: × ● Compatible tools: NH-82L195 (Nichifu dedicated tool) - Wire coupling range single wire mm: - - Wire coupling range AWG: 18-16 - L (mm): 37

[Specification 2] - Rated voltage: 600V - Rated current: 19A (1.25mm [[squared]]), 27A (2.0mm [[squared]]), 49A (5.5mm [[squared]] ) Maximum operating temperature: 105°C

[Materials/Finish] - Shrinkable tube: high-density polyethylene - Bare crimp sleeve: oxygen-free copper (C1020)

[Set contents/accessories]
-

【Note】
-
