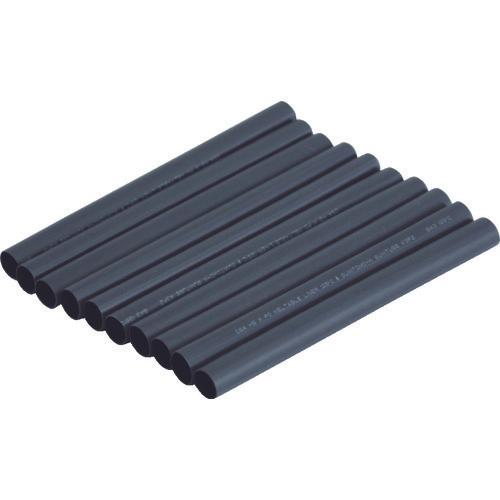

TRUSCO Adhesive heat shrinkable tube Shrinkage ratio 3:1 10 pieces

[Features] ● A heat-shrinkable tube with adhesive on the inner surface that is excellent in waterproofing. ● 3:1 high shrinkage ratio type, effective for protecting areas with large steps.

[Applications] ●Insulation, protection, terminal processing, and identification of wiring inside equipment.

[Specifications] ● Wall thickness after shrinking (mm): 1.3 ● Inner diameter before shrinking (mm): 9.5 ● Color: Black ● Inner diameter after shrinking (mm): 3 ● Length (mm): 120 ● Bag contents: Black x 10 ●Use temperature range (℃): -55 to 125 ●Shrinkage temperature (℃): 110 ●Shrinkage rate (%): 60 ●Withstand voltage (V): 600

[Specification 2] ● Operating temperature range: -55 to 125°C ● Withstanding voltage: 600 V ● Inner diameter shrinkage: 60% or more ● Shrinkage temperature: 90°C ● UL standard product ● RoHS directive compliant product

[Material/Finish] - Polyolefin with adhesive

[Set contents/accessories]
-

【Note】
-
