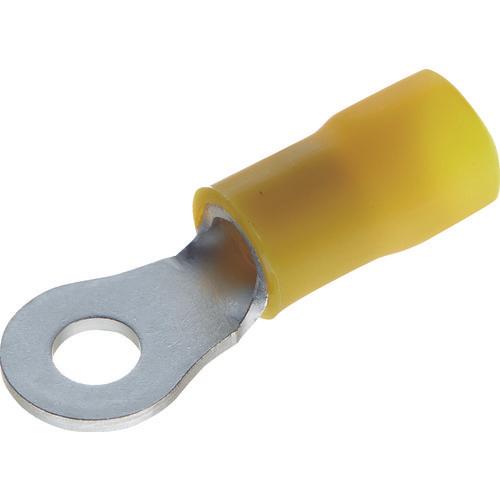

TRUSCO crimp terminal with insulation coating, expanded tube type, round type, 100 pieces

[Features]
●The contact surface (tongue) is round, and the insulator shape is an expanded tube type crimp terminal with insulation coating.

[Use]
● For connecting annealed copper stranded wires.

【specification】
● Wire coupling range Stranded wire ([[MM2]]): 0.1 to 0.3
●Wire coupling range AWG: 26-24
- Color: yellow
- Stud diameter (mm): 3.2
- Total length (mm): 17.5
- Internal dimensions (mm): 3.2
- JIS standard product: ×

[Specification 2]
●Single wire not supported

[Material/Finish]
A terminal: Oxygen-free copper (electrotin plating)
Insulator: PVC

[Set contents/accessories]
-
