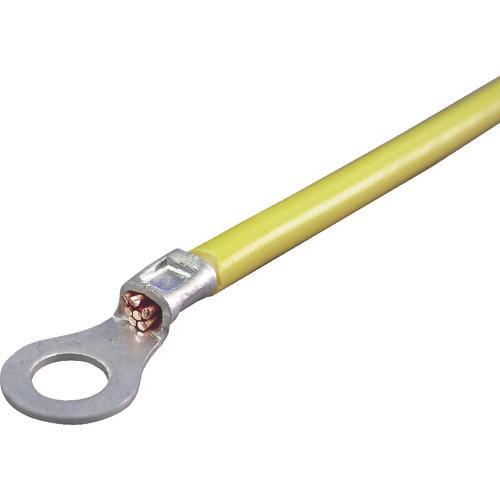

TRUSCO bare crimp terminal round shape φ5.3 length 23.5 (15 pieces)

[Features]● A bare crimp terminal with a round contact surface (tongue) and mounting holes for fixing screws.

[Applications] ● Used to connect annealed copper strands or single wires.

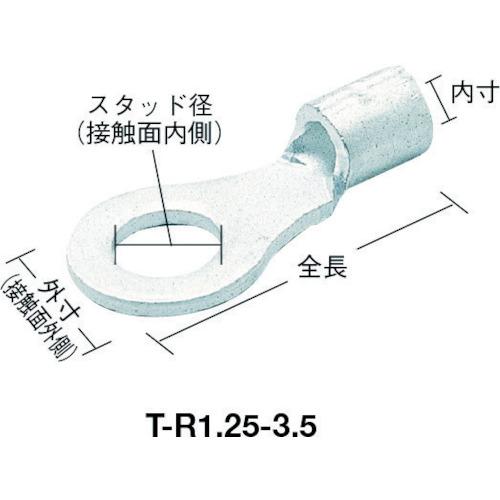

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 6.64 to 10.52 ● Stud diameter (mm): 5.3 ● Total length (mm): 23.5 ● Internal dimensions (mm): 4.5 ● JIS standard product: ○● Wire connection range Single wire mm: 2.89 to 3.65 Wire connection range AWG: 8 Color: Silver

[Specification 2] Round type / single wire compatible type

[Material/Finish] Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
