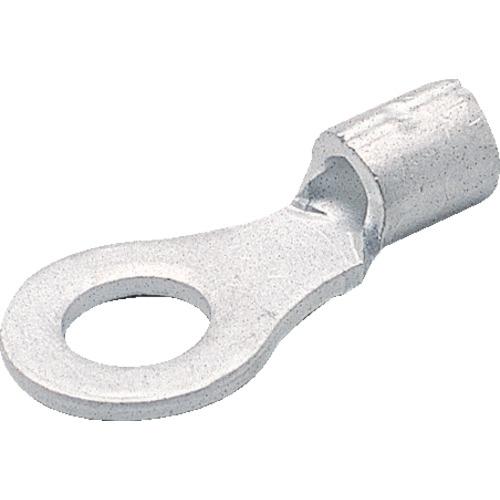

TRUSCO bare crimp terminal round shape φ6.4 length 23.0 (25 pieces)

[Features]● A bare crimp terminal with a round contact surface (tongue) and mounting holes for fixing screws.

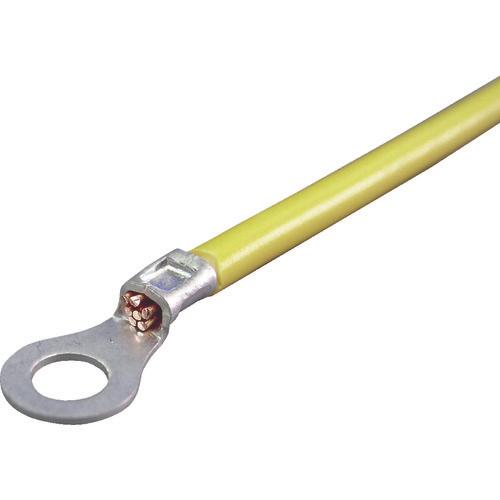

[Applications] ● Used to connect annealed copper strands or single wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 2.63 to 6.64 ● Stud diameter (mm): 6.4 ● Total length (mm): 23 ● Internal dimensions (mm): 3.4 ● JIS standard product: ○● Wire connection range Single wire mm: 1.82 to 2.89 Wire connection range AWG: 12-10 Color: Silver

[Specification 2] Round type / single wire compatible type

[Material/Finish] Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
