TRUSCO bare crimp terminal round type φ13.0 Length 42.3 3 pieces

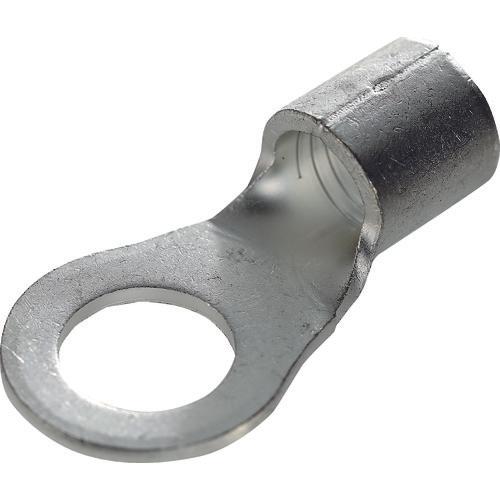

[Features]● A bare crimp terminal with a round contact surface (tongue) and mounting holes for fixing screws.

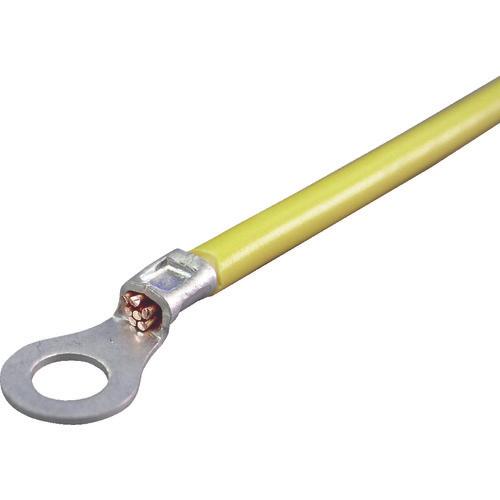

[Applications] ● Used to connect annealed copper stranded wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 26.66 to 42.42 ● Stud diameter (mm): 13 ● Overall length (mm): 42.3 ● Internal dimensions (mm): 9.4 ● JIS standard product: ○● Wire coupling range Single wire mm: - Wire coupling range AWG: 2 Color: Silver Pack quantity (pieces): 3

[Specification 2] Round shape

[Material/Finish] Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

[Caution] ●Copper wire only. ●Please use within the wire connection range. ●Please use the applicable crimping tool specified by IS standard or our company.
