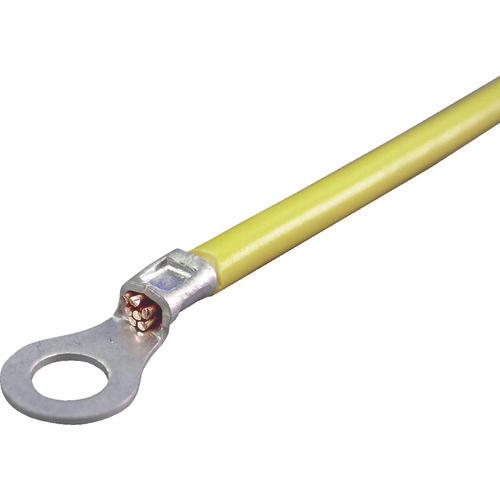

TRUSCO bare crimp terminal round shape φ3.2 length 12.3 (70 pieces included)

[Features]● A bare crimp terminal with a round contact surface (tongue) and mounting holes for fixing screws.

[Applications] ● Used to connect annealed copper strands or single wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 1.04 to 2.63 ● Stud diameter (mm): 3.2 ● Overall length (mm): 12.3 ● Internal dimensions (mm): 2.3 ● JIS standard product: × Wire coupling range Single wire mm: 1.14 to 1.82 Wire coupling range AWG: 16-14 Color: Silver

[Specification 2] Round type / single wire compatible type

[Material/Finish] Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
