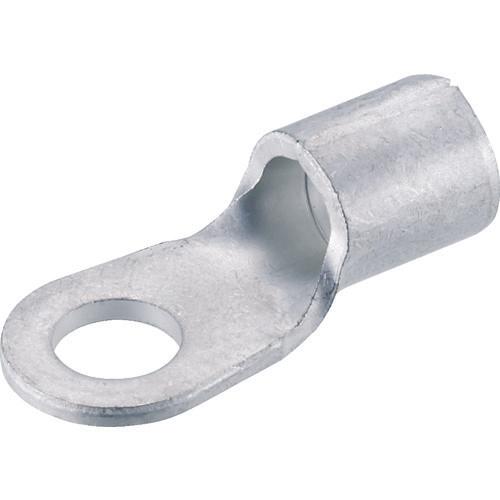

TRUSCO bare crimp terminal round shape φ6.4 length 27.5 (6 pieces included)

[Features]● A bare crimp terminal with a round contact surface (tongue) and mounting holes for fixing screws.

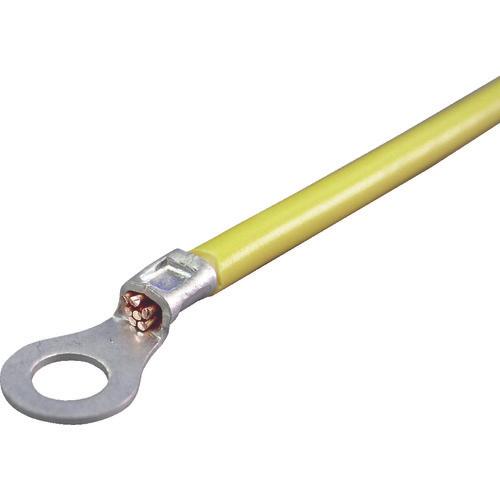

[Applications] ● Used to connect annealed copper strands.

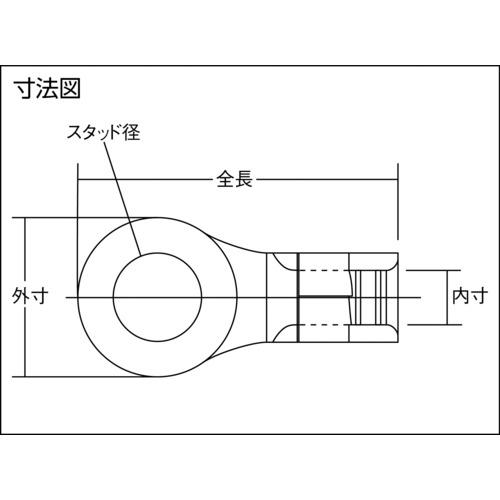

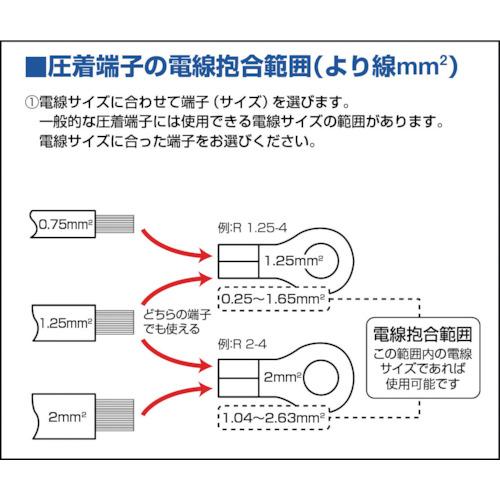

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 10.52 to 16.78 ● Stud diameter (mm): 6.4 ● Total length (mm): 27.5 ● Internal dimensions (mm): 5.8 ● JIS standard product: ○● Wire coupling range Single wire mm: - Wire coupling range AWG: 6 Color: Silver

[Specification 2] Round shape (single wire not supported)

[Material/Finish] Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
