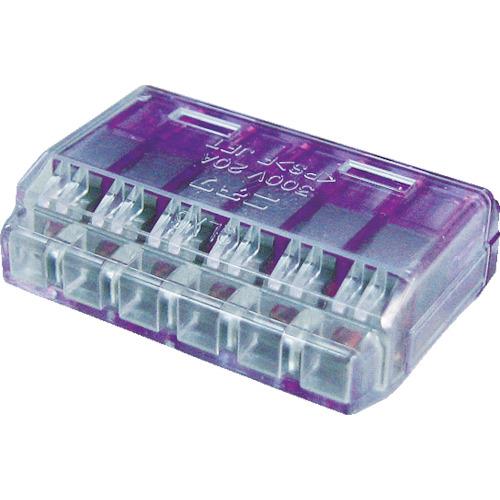

TRUSCO plug-in type electric wire connector number of poles 6 (6 pieces included)

[Features] ● Unique two-point contact spring structure. ●Connections can be visually checked with a transparent cover. ●Compliant with JIS C2813 (plug-in electric wire connector for indoor wiring). (Authorized inspection agency: E JET)

[Applications] ● For connecting stripped wires.

[Specifications] ●Number of poles: 6 ●Color: purple transparent ●Rated current: 20A ●Length (mm): 20.5 ●Width (mm): 30 ●Height (mm): 9.1

[Specification 2] ●Rated voltage: 300V ●Operating temperature range: -40 to 80℃ ●Applicable wire (copper/single wire): φ1.6mm, φ2.0mm ●Operating temperature range: -40 to 80℃

[Materials/Finish] Spring: Stainless steel (SUS301) Conductive plate: Oxygen-free copper (C1020)/Tin plating Housing: Polycarbonate (PC)

[Set contents/accessories]
-

【Note】
-
