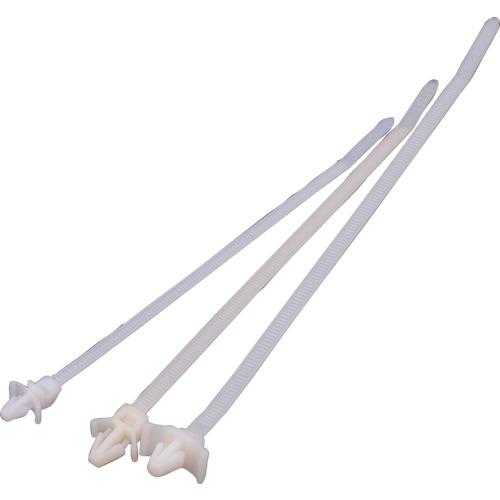

TRUSCO push mount tie (wing) width 2.5x112 mounting hole diameter 4.8

[Features]● After pushing in, the wings prevent loosening and the bundled wires are firmly fixed.

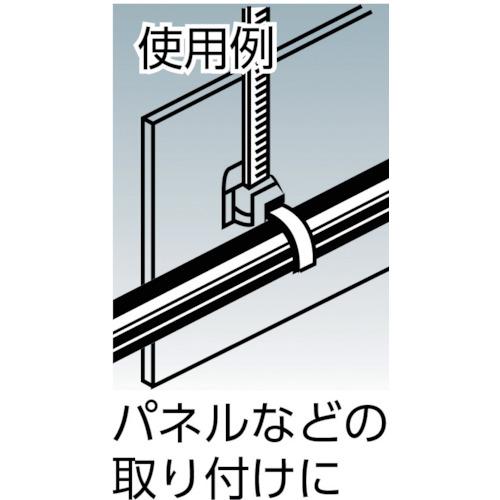

[Applications] ● For attaching bundled wires to panels, etc.

[Specifications] ● Color: White ● Width (mm): 2.5 ● Length (mm): 112 ● Thickness (mm): 1.1 ● Maximum bundle diameter (mm): 25 ● Tensile strength (N): 78.4 ● Applicable panel Thickness (mm): 2.6 ● Mounting hole diameter (mm): 4.6 ● Once tightened, it cannot be removed without cutting. ● Mounting hole dimensions (mm)

[Specification 2] ●For indoor use ●Operating temperature range: -40 to 80℃ ●UL standard product ●UL flame retardant (94V-2)

[Material/Finish] ● Nylon 66

[Set contents/accessories]
-

【Note】
-
