TRUSCO Push mount tie (without wings) Width 4.8 x 132 Mounting hole diameter 4.
  • Load image into gallery viewer, 0
  • Load image into gallery viewer, TRUSCO Push mount tie (without wings) Width 4.8 x 132 Mounting hole diameter 4.

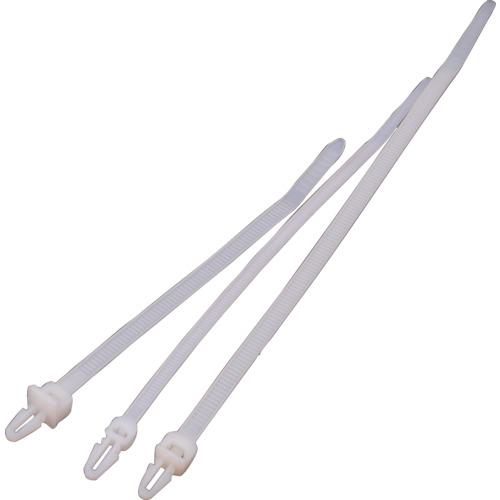

TRUSCO Push mount tie (without wings) Width 4.8 x 132 Mounting hole diameter 4.

【order ID】4506596
【basic item number】TPCVS130M*********************3100
【brand name】TRUSCO NAKAYAMA CORPORATION
【minimum order quantity】1Pack
【packages】10
【manufacturer name】TRUSCO NAKAYAMA CORPORATION
【Country of origin】Taiwan
【Weight】265.9752G
[Features]●Bundles can be easily fixed simply by pushing them into holes in chassis, panels, etc.

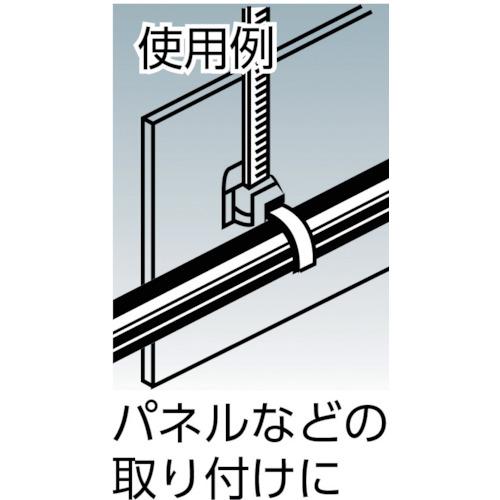

[Applications] ● For attaching bundled wires to panels, etc.

[Specifications] ● Color: White ● Width (mm): 4.8 ● Length (mm): 132 ● Thickness (mm): 1.2 ● Maximum bundle diameter (mm): 30 ● Tensile strength (N): 215.6 ● Applicable panels Thickness (mm): 3.0 ● Mounting hole diameter (mm): 4.8 ● Once tightened, it cannot be removed without cutting. ● Mounting hole dimensions (mm)

[Specification 2] ●For indoor use ●Operating temperature range: -40 to 80℃ ●UL standard product ●UL flame retardant (94V-2)

[Material/Finish] ● Nylon 66

[Set contents/accessories]
-

【Note】
-
