[Features] ● Waterproof cap shuts out water. ● Waterproof performance: Waterproof safety code IP57. (IEC529)

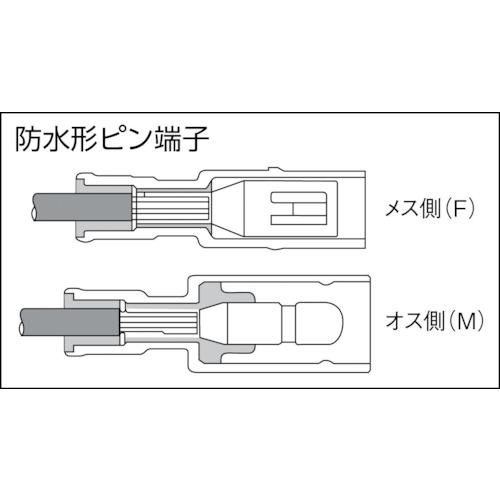

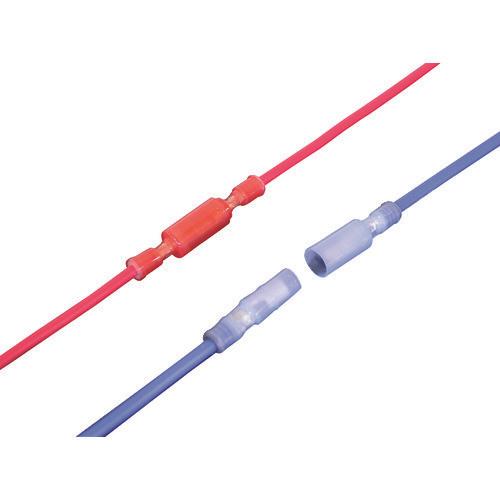

[Applications] ●By combining (fitting) the male side (M) and the female side (F), it is possible to connect and relay electric wires inside the device, where waterproof performance is required.

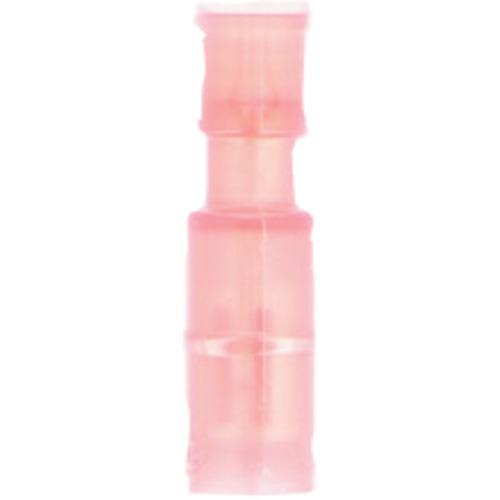

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.75 to 1.25 ● Color: red ● Shape: female ● F (mm): 15 ● Total length (mm): 26.2 ● Inner dimension (mm): 3.2 - Applicable tool: NH-64 (Nichifu dedicated tool) - Wire coupling range AWG: 18-16 - d (mm): 3.2 - L (mm): 26.2
