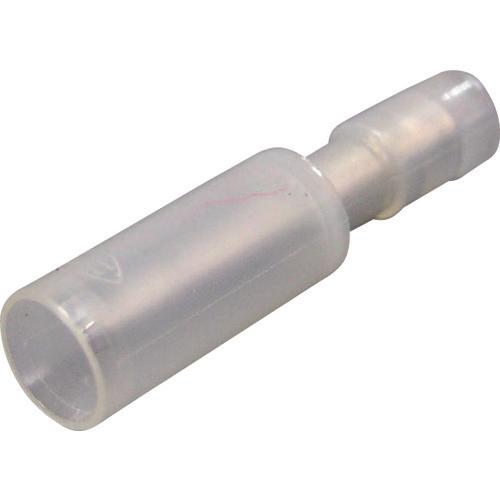

TRUSCO plug-in type pin terminal with insulation coating φ5.1 male (15 pieces included)

[Features]● Wire connection/relay can be performed with one touch of plugging/unplugging.

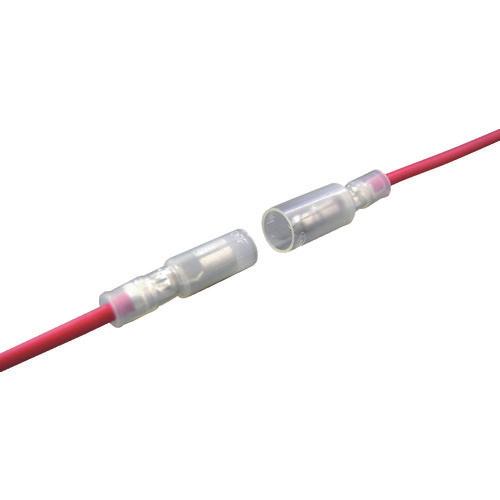

[Applications] ●Combination (fitting) of male side (M) and female side (F) for wire connection/relaying inside equipment.

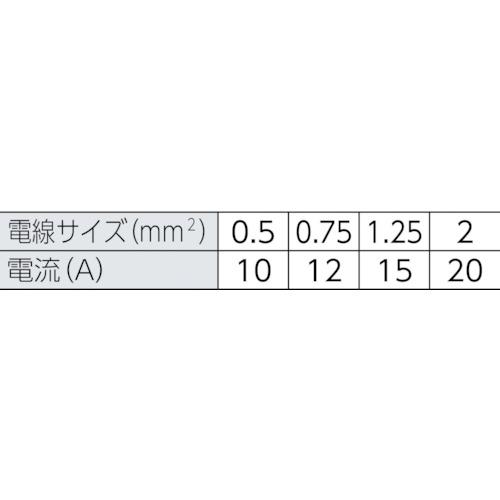

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.50 to 0.75 ● Color: transparent ● Shape: male ● F (mm): 15 ● Overall length (mm): 26.5 ● Inner dimension (mm): 1.7 ●Applicable tools: Crimp terminals with insulation coating, tools for sleeves ●Wire coupling range AWG: 20-18

[Specification 2] Rated voltage: 300V

[Material/Finish] ●Terminal: Brass (C2680)/Electric tin plating ●Insulator: Nylon

[Set contents/accessories]
-

【Note】
-
