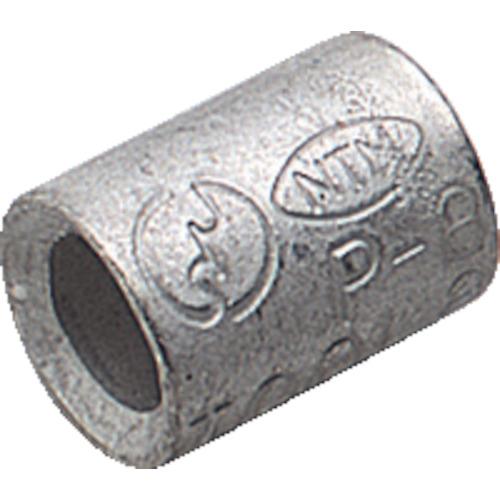

TRUSCO bare crimp sleeve P-type stranded wire 1.04-2.63 mm2 (45 pieces)

[Features] ● The cylindrical part is straight.

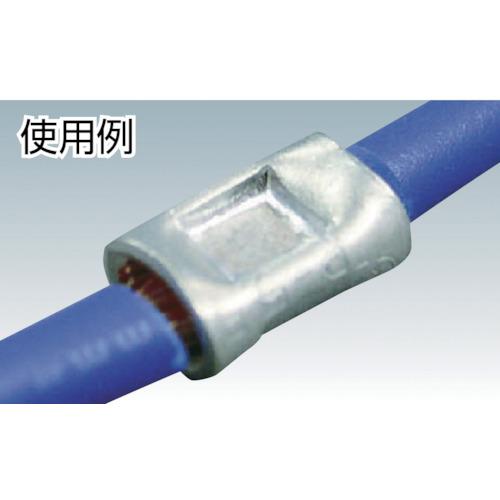

[Applications] ● For crimping and connecting wires in the sleeve (inside the cylinder).

[Specifications] ● Wire binding range Stranded wire ([[MM2]]): 1.04 to 2.63 ● Color: Silver ● Overall length (mm): 8 ● Inner dimension (mm): 2.3 ● JIS standard product: ○ ● Applicable tools: Naked Crimping terminal/sleeve tools ● Wire coupling range Single wire mm: - Wire coupling range AWG: 16-14 d (mm): 2.3 L (mm): 8.0

[Specification 2] ● JIS C2806 compliant (excluding P-1.25) ● P type

[Material/Finish] Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
