TRUSCO bare crimp sleeve P-type stranded wire 0.25-1.65 mm2 (45 pieces)

[Features] ● The cylindrical part is straight.

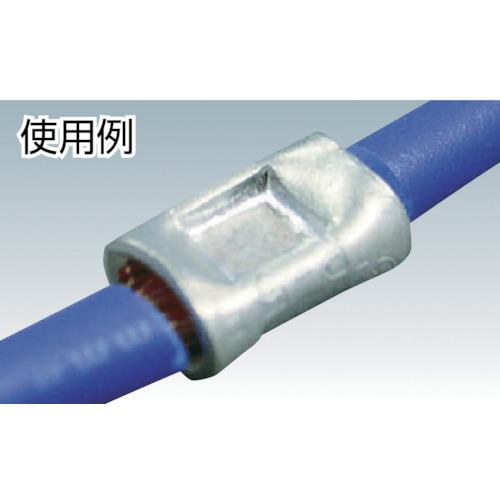

[Applications] ● For crimping and connecting wires in the sleeve (inside the cylinder).

[Specifications] ● Wire binding range Stranded wire ([[MM2]]): 0.25 to 1.65 ● Overall length (mm): 8 ● Inner dimension (mm): 1.8 ● JIS standard product: × ● Compatible tools: Bare crimp terminal/sleeve Tool for wire connection Single wire mm: - Wire connection range AWG: 22-16 d (mm): 1.8 L (mm): 8.0

[Specification 2] ● JIS C2806 compliant (excluding P-1.25) ● P type

[Material/Finish] Oxygen-free copper (C1020)/Electrotin plating

[Set contents/accessories]
-

【Note】
-
