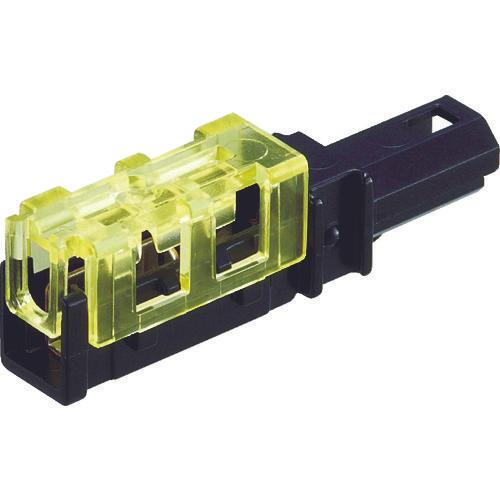

[Features]● Male and female connections are possible with a single connector. ●It can be used as a multi-pole by connecting connectors. ●There is no need to strip the wire coating.

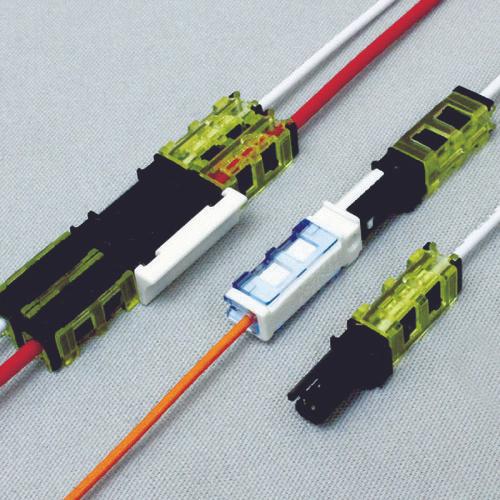

[Applications] ●Combination (fitting) of male side (M) and female side (F) for wire connection/relaying in equipment.
[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.2 to 0.5 ● Color: Black ● Overall length (mm): 25.8 ● Applicable tools: Crimp terminal with insulation coating, tool for sleeve ● Wire coupling range Single wire mm : 0.65 Wire connection range AWG: 24 to 20
[Specification 2] Rated voltage: 300V
[Material/Finish] ●Terminal: Brass (C2680)/Electric tin plating ●Insulator: Nylon
