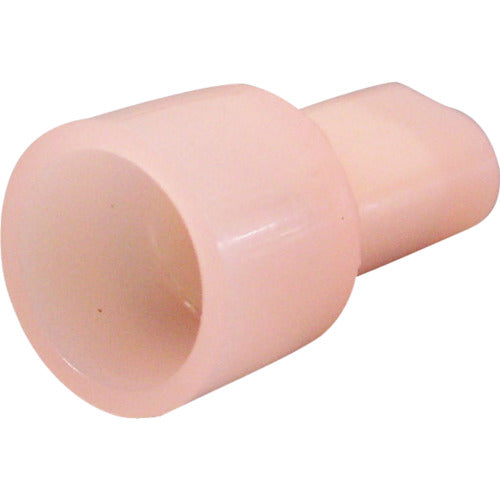

Nichifu disaster prevention heat resistant closed terminal connector SQ CE-5HP 100 pieces

[Features] ● The troublesome taping work of the conventional method is not necessary, and the work time can be shortened. ●It has passed the heat resistance test that reaches 380°C after 15 minutes specified in Notification No. 11 of the Fire and Disaster Management Agency.

[Applications] ●For connecting disaster prevention devices such as fire alarms.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.5 to 1.25 ● Overall length (mm): 22.0 ● R (mm): 7.2 ● E (mm): 10.8 ● Inner diameter (mm): 10.0 ● JIS Standard product: × ●Rated current (A): 5 ●Applicable tool: Heat-resistant closed-end connection tool for disaster prevention ●Wire mm [[square of]] from wire coupling range

[Specification 2] ● Rated voltage: 300 V ● Color: red transparent

[Material/Finish] Cross-linked polyethylene

[Set contents/accessories]
-

[Caution] Dedicated crimping tool: NH 40
