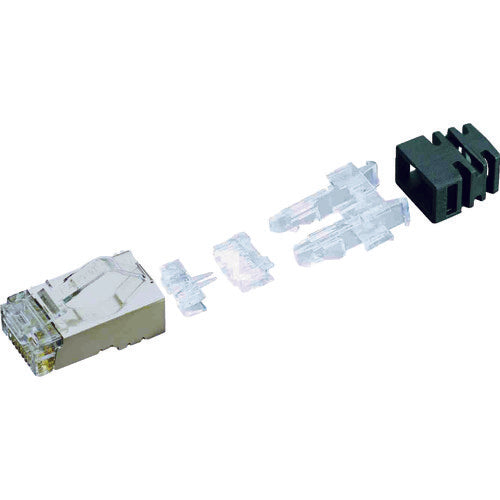

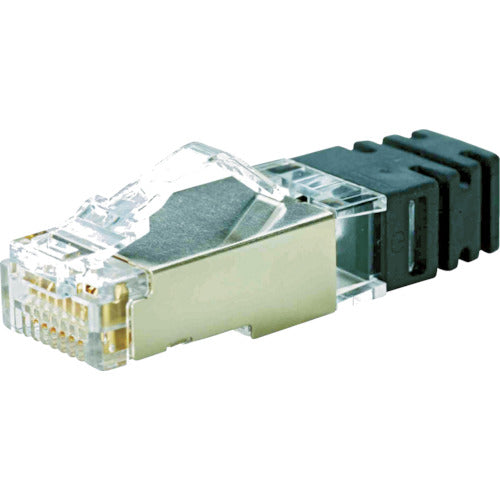

[Features] ● The L-shaped claws prevent the claws from breaking. ● The contact arrangement is zigzag to greatly reduce the effect of stroke. ● Can be used with both solid and stranded wires. ● CAT6 shielded modular plug.

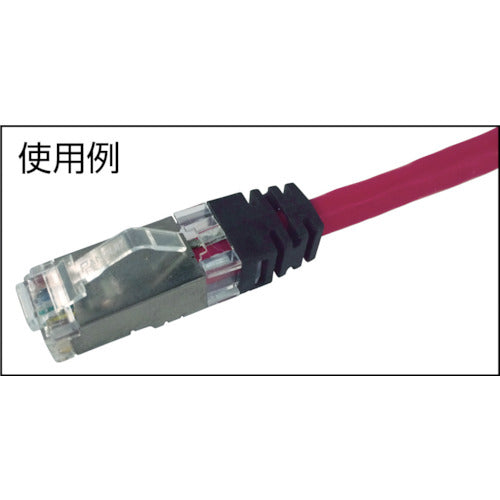

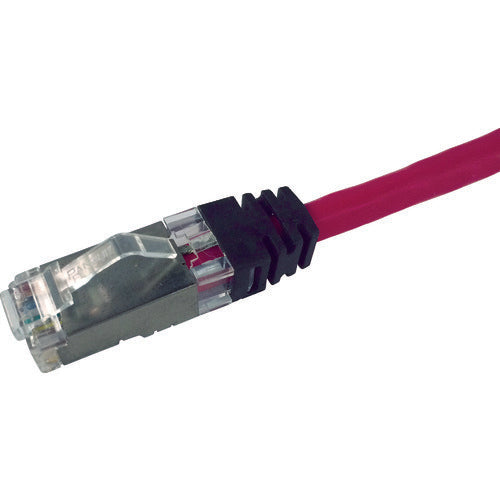

[Applications] ●Shielded modular plug. ●Connecting cables and devices.
[Specifications] Type: Category 6 Operating temperature range (℃): -10 to 60℃
[Specification 2] ● Conductor outer diameter: φ0.4mm (AWG26) to φ0.51mm (AWG24) solid wire and conductor stranded wire ● Insulation outer diameter: φ0.889mm to φ1.016mm ● Outer coating diameter: φ5.72mm to φ6.35mm ScTP, FTP or STP ● Operating temperature range: -10 to 60°C ● For indoor use ● Crimping tool: MPT5-8AS, MPT5E ● Termination auxiliary tool: CSPT
