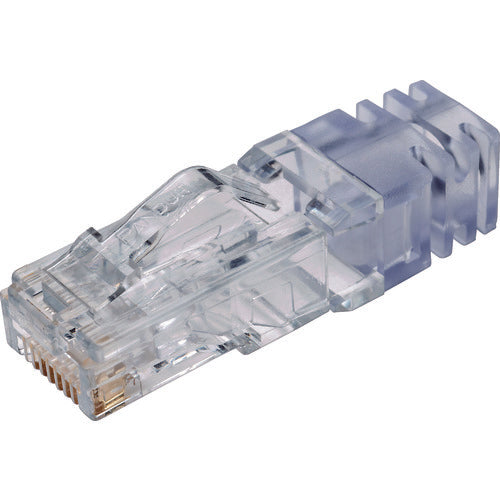

PANDUIT modular plug LAN connector category 6A 100 pieces SP6X88-C

[Features] ● The arched claw prevents plugging and unplugging and lever breakage. ●The contact arrangement is staggered to greatly reduce the effects of crosstalk. -Comes with slim boots.

[Applications] ●Category 6A communication connector.

[Specifications] - Type: Category 6A - Color: Transparent - Compatible cable: AWG23/24 single wire

[Specification 2] ● Compatible only with Panduit category 6A UTP cable (PU 6A04 ) ● Conductor outer diameter: AWG23 and AWG24 single wire ● Insulator outer diameter: Φ1.02mm to Φ1.22mm ● Jacket diameter: Φ6. 60 mm to Φ8.00 mm ● Operating temperature range: -10 to 60°C ● Indoor use ● Crimping tool: MPT5-8AS, MPT5E ● Auxiliary termination tool: CSPT

[Material/Finish] ● Thermoplastic ● Polycarbonate ● Phosphor bronze ● Soft PVC ● Synthetic resin

[Set contents/accessories]
-

【Note】
-
