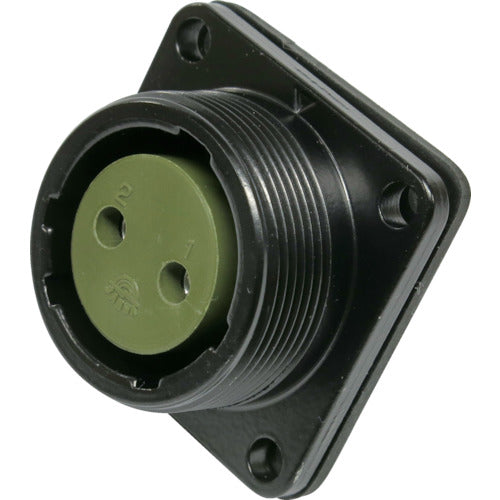

SANWA waterproof connector SNW-16 2-pole RSF front mount

[Features]● A particularly low-cost soldered type circular connector that has been widely used for general circuits for a long time. ●Waterproof type.

[Use]
-

[Specifications] ● Connector shape: RSF (female) ● Number of contacts: 2 ● Rated current: 10A ● Rating: 10A250V ● Withstand voltage (V): 1000 ● Wire conductor cross-sectional area ([[MM2]]): 1.25 ● Rated voltage : AC250V

[Specification 2] ●Contact diameter: φ1.6mm ●Soldering hole diameter: φ1.7mm ●PCM (plug male) and RSF (receptacle female) are mated ●Applicable wire size (mm [[squared]] or less): 1.25

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
