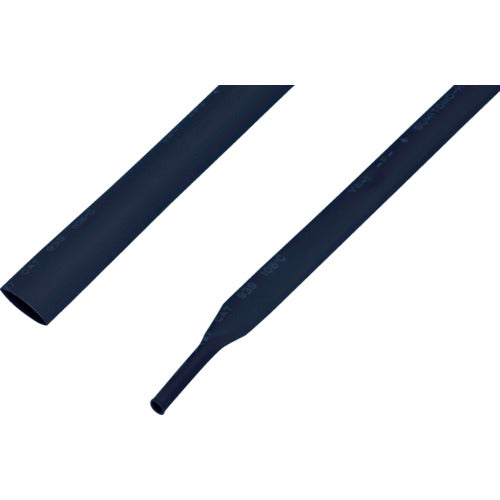

SUMITOMO ELECTRIC Heat Shrink Tubing Sumitube UL standard product (10 pieces)

[Features] ● UL224 standard product. ●Excellent flexibility and flame resistance. ●This product complies with the RoHS Directive.

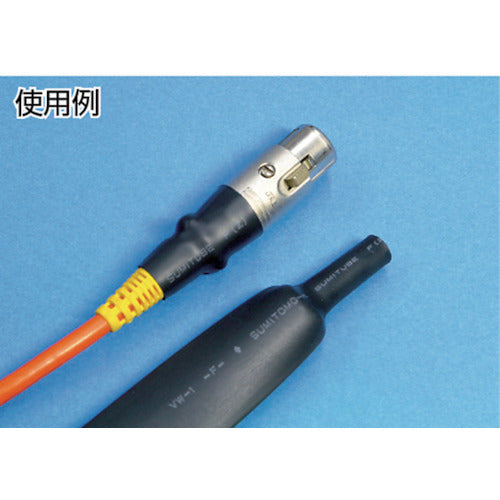

[Applications] ●It can be applied to many applications such as insulation and protection of electric wire connections and parts, as well as anti-corrosion of pipes.

[Specifications] ● Inner diameter before contraction (mm): 5.4 ± 0.3 ● Color: Black ● Compatible wire ([[MM2]]): 5.5 ● Inner diameter after contraction (mm): 2.5 ● Length (mm): 1000 ● Length (m): 1

[Specification 2] ● Operating temperature range: -55 to 105°C ● Rated voltage: 600 V ● Inner diameter shrinkage: 50% (when heated at 90°C) ● Shrinkage completion temperature: 100°C ● Rated temperature: 105°C ● Applicable standard: UL224 VW-1

[Material/Finish] ●Electron beam cross-linked soft flame-retardant polyolefin resin
