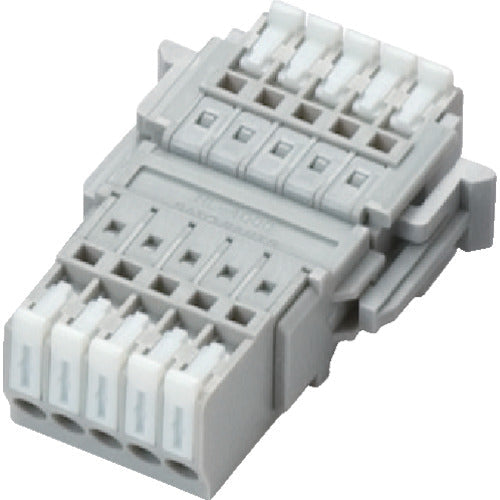

SATO PARTS 2-piece type screwless terminal block SL-4000-AS series

[Features]●Compact design with terminal pitch of 3.81 mm. A relay terminal block that can be used with single wires and stranded wires. ●Easy one-touch connection using the button lock mechanism. ●Wires can be connected directly by simply peeling off the coating without soldering. (Peeled wire length 9mm)

[Use] ●As a relay terminal block for various sensors and signals.

[Specifications] ● Color: Gray ● Number of poles: 5 ● Length (mm): 47.5 ● Width (mm): 34.24 ● Height (mm): 14.7 ● Rating: DC300V-5A ● Insulation resistance: DC500V, 100MΩ or more

[Specification 2] Withstand voltage: AC2000V (1 minute)

[Materials/Finish] ●Body: Nylon 66 ●Button: Modified polyphenylene ether
