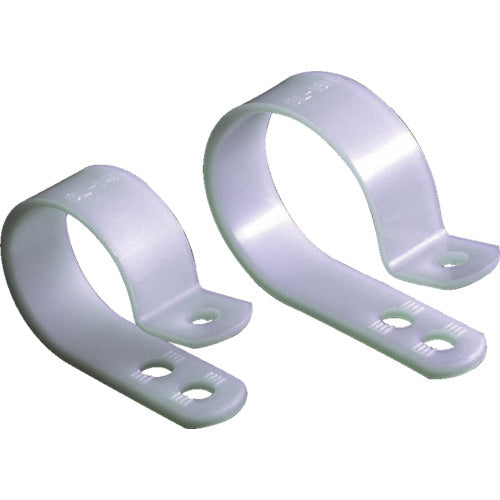

SHINAGAWA Shoko nylon clip 100 pieces Inner diameter outer hole 16.8mm when fixed

[Features]●The inner edges are rounded, so they do not damage the wire coating. ● Convergence diameter can be changed for SL-14N to SL-32N.

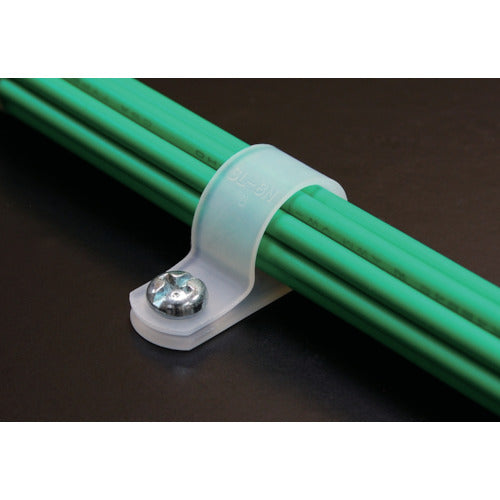

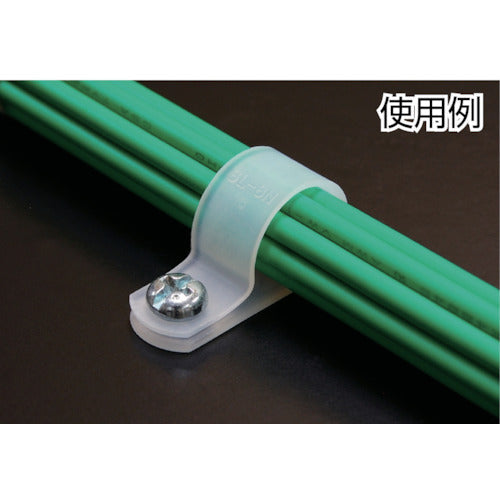

[Applications] ●Clip for screw fixing wiring bundles and cables.

[Specifications] ● Color: Natural ● Fixed inner diameter (mm) outer hole: 16.8 ● t (mm): 1.8 ● W (mm): 12.7 ● A (mm): 17.5 ● φd (mm): 5.1

[Specification 2] ● Indoor use ● UL standard certified product (UL94V-2) ● Rated 85°C

[Material/Finish] ● Nylon 66

[Set contents/accessories]
-

【Note】
-
