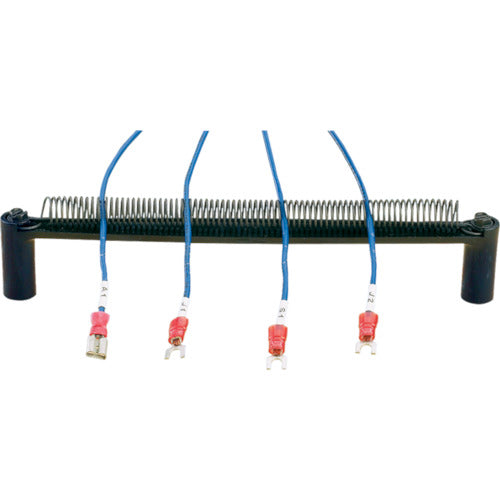

PANDUIT Harness Board Accessory Spring Holder (10 pieces)

[Features] ● Holds the terminal of the wire harness with the stress of the spring. ● Consists of a spring and a spring holder that keeps the spring straight. ●When removing from the harness board, the wire can be easily removed from the spring. ●The spring holder has a mandrel and a hexagonal screw for fixing. ●PBSC6-X can be fixed without a spring holder.

[Applications] ● Holds wire harness terminals.

[Specifications] ● Color: Black ● Length (mm): 174.0 ● Width (mm): 13.5 ● Height (mm): 33.0 ● Applicable fixed platform: QB-BASE120-Q, QB-BASE175-Q ● Applicable screw: QB -S8-500-C Applicable spring: PBSC3-X, PBSC6-X A (mm): 174.0 B (mm): 33.0 C (mm): 13.5

[Specification 2]
-

[Material/Finish] ● Nylon 66

[Set contents/accessories]
-

【Note】
-
