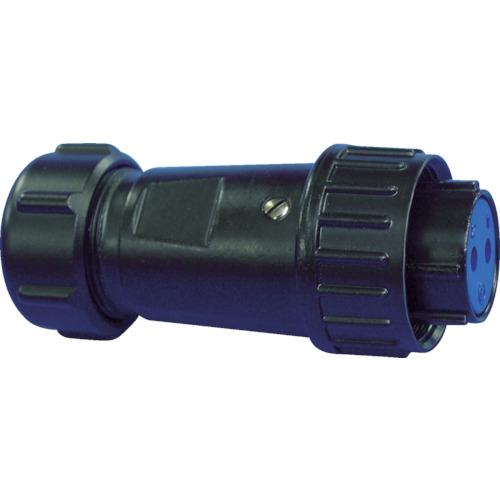

Nanaboshi waterproof metal connector NJW-20 series 3-pole PF8

[Features]● Has a waterproof function when combined. (equivalent to IP67) ●Uses special surface treatment. ● PSE notation. (Receptacle is not applicable) ●Wiring connection method is soldering.

[Applications] ●Screw-in lock type waterproof connector.

[Specifications] ● Connector shape: PF (female) ● Number of contacts: 3 ● Rating: 15A250V ● Withstand voltage (V): 1500 ● Wire conductor cross-sectional area ([[MM2]]): 2.00

[Specification 2] ● Cable outer diameter (plug) used: φ7.0 to φ8.6 (PF8), φ8.6 to φ10.5 (PF10) ● PF (female plug) and RM (receptacle male) are mated ● Resistant Voltage: 1500V

[Materials/Finish] ●Shell: Zinc alloy, special chemical treatment ●Insulator: Synthetic resin ●Contact: Copper alloy, silver plating ●Packing: Synthetic rubber

[Set contents/accessories]
-

【Note】
-
