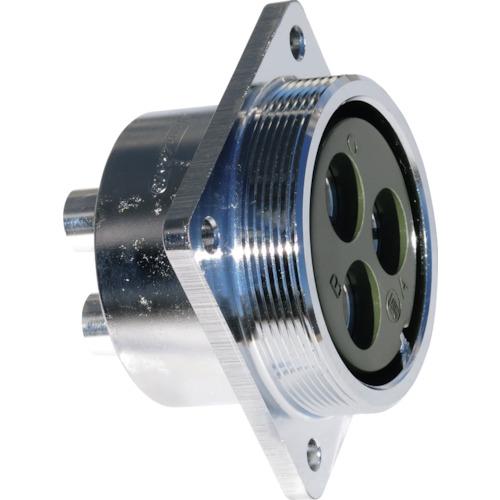

Nanaboshi metal connector NCS-54 series 4-pole RF

[Features]● Can be used for various circuits with the basic shape of a metal connector. ●Wiring connection method is soldering. ● Mechanically and electrically stable due to its robust and simple structure.

[Applications] ●Screw-in lock type connector.

[Specifications] ● Connector shape: RF (female) ● Number of contacts: 4 ● Rating: 50A250V ● Limit operating voltage (V): 500 ● Withstanding voltage (V): 2500 ● Wire conductor cross-sectional area ([[MM2]]): 14

[Specification 2] ●PM (plug male) and RF (receptacle female) mate ●Square flange type

[Materials/Finish] ●Shell: Zinc alloy, chrome plating ●Insulator: Synthetic resin ●Contact: Copper alloy, silver plating

[Set contents/accessories]
-

【Note】
-
