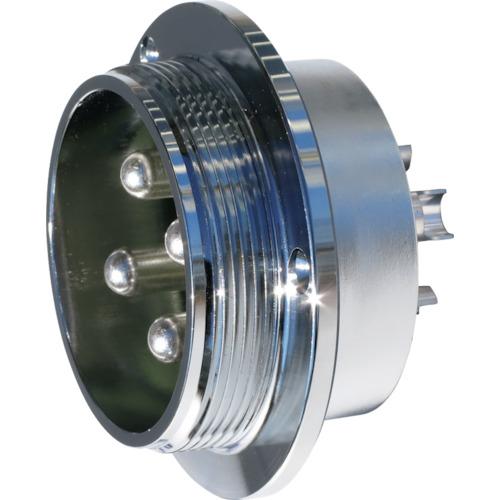

Nanaboshi Metal Connector NCS-50 Series 25 Pole R

[Features]● Can be used for various circuits with the basic shape of a metal connector. ● Mechanically and electrically stable due to its robust and simple structure. ●Wiring connection method is soldering.

[Applications] ●Screw-in lock type connector.

[Specifications] Connector shape: R (male) Number of contacts: 25 Ratings: 4 = 15A, 21 = 5A, 250V Limit operating voltage (V): 300 Withstand voltage (V): 1800 Wire conductor Cross-sectional area ([[MM2]]): 4 = 3.5, 21 = 2

[Specification 2] - Limit operating voltage: 300V - Withstand voltage: 1800V

[Materials/Finish] ●Shell: Zinc alloy, chrome plating ●Insulator: Synthetic resin ●Contact: Copper alloy, silver plating

[Set contents/accessories]
-

【Note】
-
