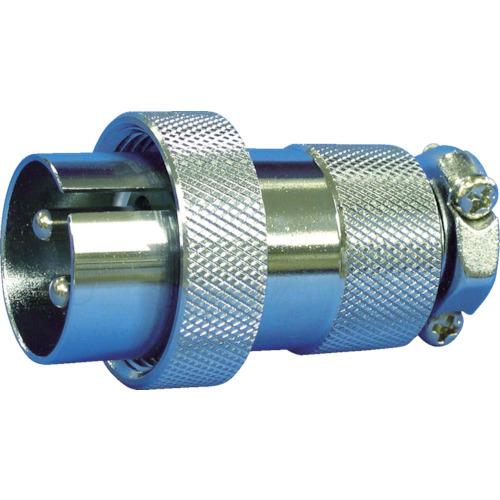

Nanaboshi metal connector NCS-25 series 4-pole PM

[Features]● Can be used for various circuits with the basic shape of a metal connector. ● Mechanically and electrically stable due to its robust and simple structure. ●Products with 2 to 5 contacts are marked with PSE. (Receptacles are excluded.) ●Wire connections are soldered.

[Applications] ●Screw-in lock type connector.

[Specifications] ● Connector shape: PM (male) ● Number of contacts: 4 ● Rating: 10A250V ● Limit operating voltage (V): 400 ● Withstand voltage (V): 2000 ● Wire conductor cross-sectional area ([[MM2]]): 2 Withstand voltage: 2000V (excluding NCS-255 series), 1800V (NCS-255 series)

[Specification 2] ●PM (plug male) and RF (receptacle female) or ADF (adapter female) mate ●Limit operating voltage: 400V

[Materials/Finish] ●Shell: Zinc alloy, chrome plating ●Insulator: Synthetic resin ●Contact: Copper alloy, nickel plating

[Set contents/accessories]
-

【Note】
-
