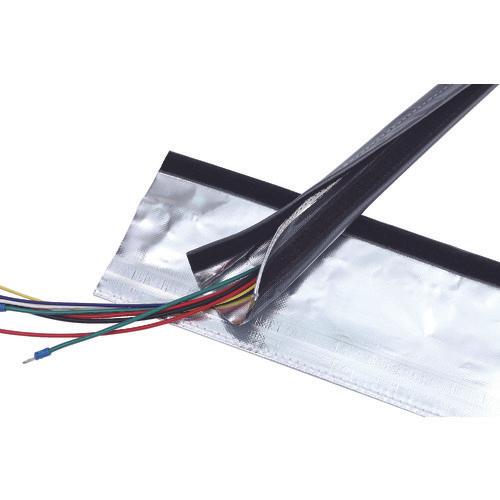

TRUSCO electromagnetic wave shield binding tube magic type 30Φ5m

[Features]● A wiring bundling tube for electromagnetic noise countermeasures. ●Since the thickness of the aluminum foil portion is as thick as 0.02mm, sufficient shielding effect can be expected. (Depending on the usage environment.) ●Velcro type that can be easily installed without tools and has good airtightness. ●Branch wiring can be easily removed. ●Even after wiring between devices, it can be easily retrofitted. ●Suitable for bundling short lengths, inspecting and changing wiring, and other applications that require frequent attachment and detachment. ● Comes with braided ground wire (tinned annealed copper wire). ●This product complies with the RoHS Directive.

[Applications] ● For wiring noise countermeasures. ●As a wiring bundling tube

[Specifications] ● Nominal diameter (mm): 30 ● Length (m): 5 ● Thickness (mm): 0.28 ● Operating temperature range: -15 to 60°C

[Specification 2] ●For indoor use ●Operating temperature range: -15 to 60℃ ●Aluminum foil thickness: 0.02mm ●Compliant with RoHS Directive. Passed the material combustion test for railway vehicles (flame retardant)

[Material/Finish] ●Flame-retardant soft vinyl chloride with PET cloth + aluminum foil (equivalent to UL94VTM-0) ●Polyester (magic tape part)

[Set contents/accessories]
-

【Note】
-
