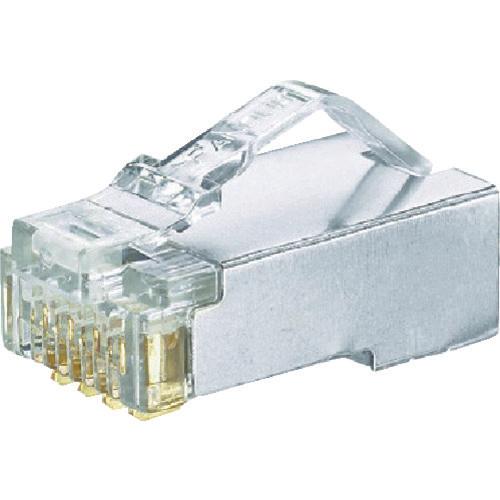

PANDUIT shielded modular plug LAN connector category 5E 100 pieces MPS588-C

[Features] ● Prevents the claws from breaking. ●The contact arrangement is staggered to greatly reduce the impact of stroke. ●Single wire and stranded wire common type. ●The contact arrangement is staggered to greatly reduce the effect of stroke. ●The march-shaped claw prevents the lever from breaking when the plug is attached or detached.

[Applications] ● LAN cable connections in adverse environments such as factories, factory offices, commercial buildings, and residences.

[Specifications] ●Type: Category 5e ●Applicable cable: AWG26 to 24 (single wire, stranded wire)

[Specification 2] ● Conductor outer diameter: φ0.4mm (AWG26) to φ0.51mm (AWG24) solid wire and conductor stranded wire ● Insulator outer diameter: φ0.889mm to φ1.016mm ● Coating diameter: φ5.334mm to φ6 .35mm STP ●Operating temperature range: -10 to 60℃ ●Indoor use ●Crimping tool: MPT5-8AS, MPT5E

[Materials/Finish] ● Housing: Thermoplastic ● Contact: Phosphor bronze ● Shield: Brass, bright nickel plating

[Set contents/accessories]
-

【Note】
-
