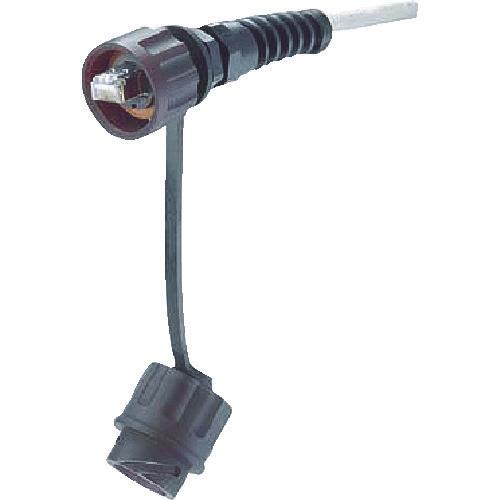

PANDUIT category 5E waterproof and dustproof modular plug

[Features]● IP67 compliant industrial Ethernet connector with water and dust resistance. ●Equipped with a protective cap that maintains IP67 compliant water and dust resistance when not connected. • Compliant with TIA and ODVA and IEC standards for sealed Ethernet/IP RJ45 connections. ●Bulkhead anti-rotation washer eliminates the possibility of module rotation. ●The wiring sequence seal is attached to the cap of the modular jack to prevent installation errors.

[Applications] ● LAN cable connections in adverse environments such as factories, factory offices, commercial buildings, and residences.

[Specifications] Type: Category 5e

[Specification 2] Cable type: Twisted pair cable compatible with categories 3, 5, and 5e Conductor outer diameter: φ0.4 [mm] (AWG26) to φ0.51 [mm] (AWG24) single wire and conductor Stranded wire Insulator outer diameter: φ0.889 [mm] to φ1.016 [mm] Outer coating diameter: φ4.826 [mm] to φ6.35 [mm] UTP setting Operating temperature range: -10 to 60°C

[Material/Finish] Plug holder: Polybutylene terephthalate (PBT) containing glass fiber

[Set contents/accessories]
-

[Caution] ●Crimping tool: MPT5-8AS is required.
