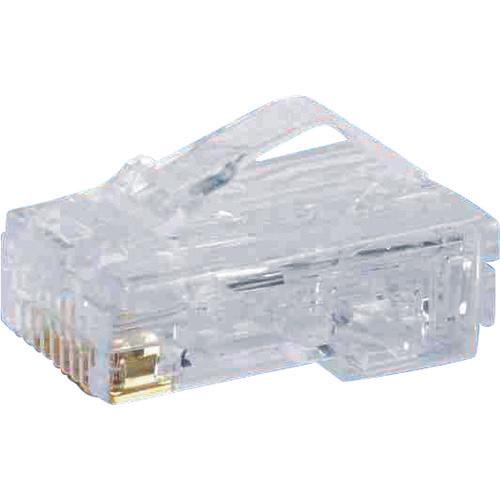

PANDUIT Category 5E Modular plug for small diameter cable AWG28 single wire / stranded wire 100 pieces MP528-C

[Features] ● The arch-shaped lever prevents the lever from breaking due to plug removal or other factors. ●Cleared 2500 mating cycles. ●The contact arrangement is staggered to greatly reduce the effects of crosstalk.

[Application] ●Connector for CAT5E communication.

[Specifications] ●Type: Category 5e ●Compatible cable: AWG28 solid wire and stranded wire ●Plug type: RJ45 ●Operating temperature range (°C): -10 to 60°C ●Conductor outer diameter: AWG28 solid wire and stranded wire ●Insulator outer diameter (mm): Maximum φ0.69 Outer coating diameter (mm): φ3.51 to φ4.11

[Specification 2] ● Conductor outer diameter: AWG28 solid wire and stranded wire ● Insulator outer diameter: maximum φ0.69 mm ● Jacket diameter: φ3.51 mm to φ4.11 mm UTP ● Auxiliary termination tool: SGPT ● Crimping tool: MPT5 -8AS, MPT5E Indoor use

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
