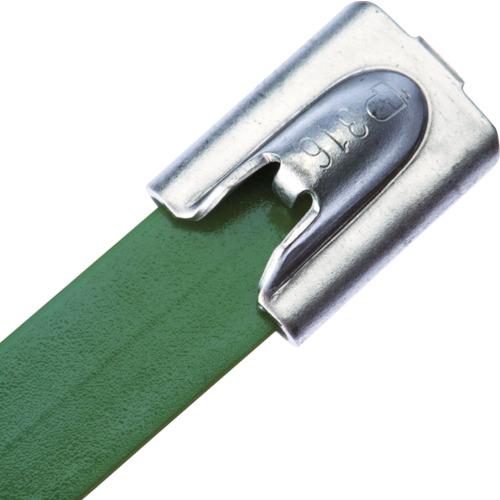

[Features] ● The SUS316 is fully coated with polyester, so it does not damage the bundled wires. ●Polyester coating enhances edge protection and prevents galvanic corrosion between dissimilar metals. ●Ideal for use under extremely severe conditions. ● Estimated outdoor use is over 20 years. ●It is halogen-free, generates little smoke, and has excellent UV resistance. ●It is possible to distinguish by color with 6 colors. ● Constructed from AISI 316 stainless steel for the most corrosive environments. ●Improves safety and reduces operating costs by distinguishing different parts of the infrastructure by color. ●Because the entire surface is coated with polyester, it does not damage the connection. ●The original locking head design achieves strong loop tensile strength, and the variation in strength is also reduced.
[Uses] ●Bundling, fixing, and holding cables, etc. in the aircraft, automobile, oil & gas, railroad, and shipbuilding industries. ● For bundling and holding cables, etc. in the driving part of railway vehicles and under the vehicle, bundling and fixing cables for inboard power supply cables, outboard lighting, communication equipment, etc. ●Bundling and fixing cables for onboard power supply cables, outboard lighting, communication equipment, etc.

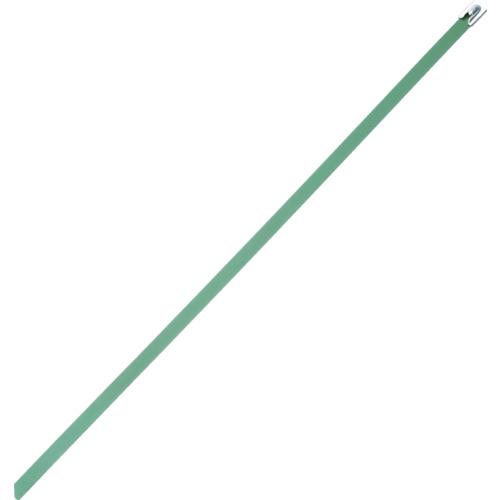

[Specifications] ● Color: Green ● Width (mm): 7.9 ● Thickness (mm): 0.25 ● Length (mm): 362 ● Maximum binding diameter (mm): 102 ● Tensile strength (N): 1112 ● Recommended tools : HTMT, ST2MT, GS4MT-E Operating temperature range (°C): -40 to 150
[Specification 2] ● For indoor and outdoor use ● Operating temperature range: -40 to 150°C ● UL certified product ● Dedicated binding tools: HTMT, ST2MT, GS4MT-E, RT2HT ● RoHS compliant
