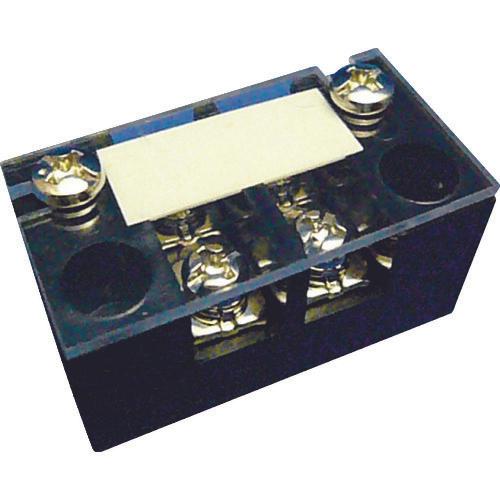

2-row type terminal block for SATO PARTS relay ML-1 series 300V-15A number of poles 2

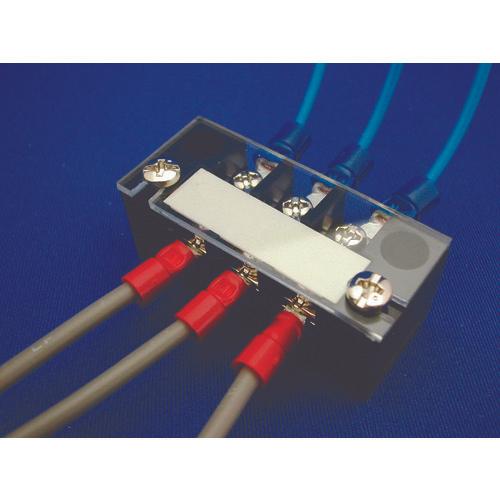

[Features]- 15A relay terminal block using M3.5 x 8 screws. ●This product includes a cover and a name plate. ●Since it is equipped with a square washer, crimp terminals are not required.

[Use] ●As a relay terminal block for various signals, sensors, and power supplies.

[Specifications] ● Color: Black ● Number of poles: 2 ● Length (mm): 38 ● Width (mm): 20 ● Height (mm): 18.5 ● Rating: 300V-15A ● Insulation resistance: DC500V, 100MΩ or more

[Specification 2] Withstand voltage: AC2000V (1 minute)

[Materials/Finish] ●Body: Phenol ●Cover: Polycarbonate

[Set contents/accessories]
-

【Note】
-
