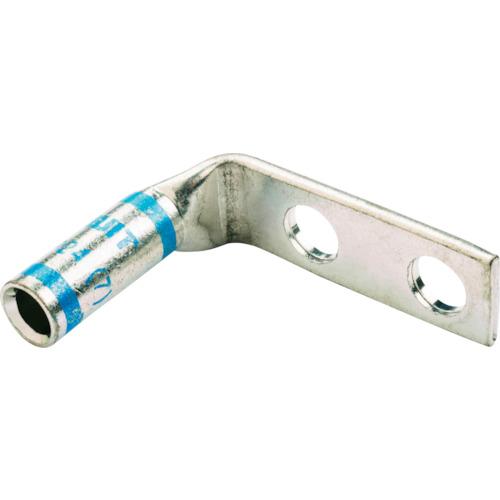

PANDUIT copper compression terminal, standard barrel, 2 holes, 90° angle (50 pieces)

[Features] ● Two-hole compression terminal for copper wires. ●The die number is displayed on the barrel so that the applicable wire size and the tool to be used can be identified. ● You can check whether the wire is completely inserted through the hole for checking the wire in the barrel. ●Tin-plated to prevent rust.

[Applications] ● For connecting wires.

[Specifications] ● Mounting hole size (mm): 6.9 ● Overall length (mm): 42.2 ● Mounting hole spacing (mm): 16.0 ● JIS standard product: × ● Thickness (mm): 2.0 ● Wire coupling range AWG: 6 ● Internal dimensions (mm): 16 ● Width (mm): 12.2 ● Quantity per bag (pieces): 50 ● Stud diameter (mm): 6.9 ● Electric wire coupling range single wire mm

[Specification 2] VL/CSA/RoHS compliant product

[Material/Finish] Copper

[Set contents/accessories]
-

【Note】
-
