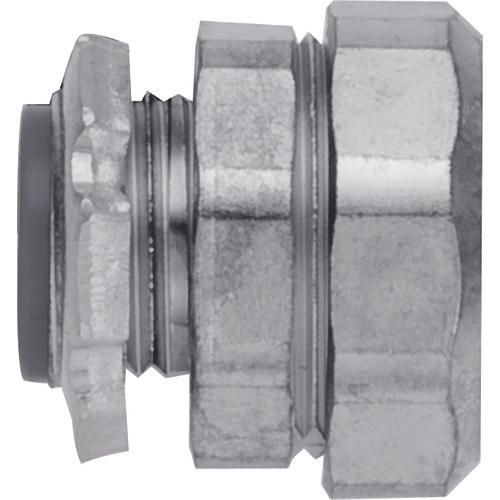

Connector for SANKEI Keiflex with parallel male thread for knockout connection

[Features]● An insulator is attached to the wire port, so it is not necessary to attach an insulating bushing.

[Applications] ●Knockout connection for control panels.

[Specifications] ● Dimensions (mm) A: 66.3 ● Connection screw S1 (mm): 47.8 ● Dimensions (mm) L1: 16.0 ● Connection screw nominal diameter: G1-1/2 ● Dimensions (mm) L2: 28 ● Insertable Cable maximum outer diameter (mm): 37

[Specification 2] ●Ambient temperature: -20 to 100℃ ●Not waterproof ●Compatible Keiflex: KMB, KIB

[Materials/Finish] Body: Zinc alloy die-cast

[Set contents/accessories]
-

[Caution] Separate fare for Okinawa and remote islands
