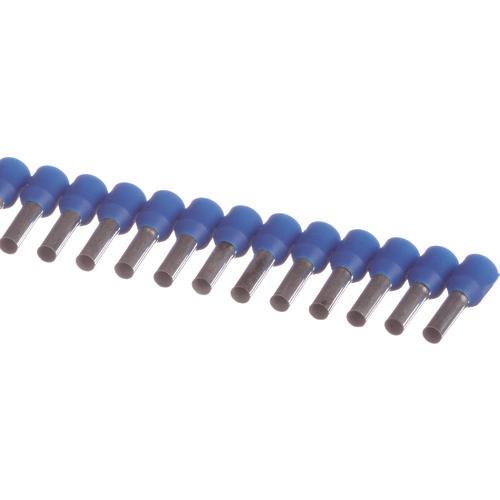

Ferrule terminal with insulation for PANDUIT CT-1000 Blue 500 pieces FS D80-8-DSL6

[Features]
● Dedicated tool: Insulated ferrule terminal for CT-1000.
●50 pieces are connected.
●Continuous molding design of the ferrule keeps the position of the ferrule constant in the tool for fast and reliable crimping.
●With polypropylene insulation based on DIN color code.

[Use]
●Connection to the terminal block.

【specification】
Applicable wire range Stranded wire [[MM2]]: 2.5
Applicable wire range AWG: 14
- Color: blue
- Overall length (mm): 15.2
- Stud diameter (mm): 2.3
- L (mm): 15.2
- Maximum insulation outer diameter (mm): φ4.0
- P (mm): 8
- ID (mm): 2.3

[Specification 2]
●Conductive part length: 8mm
-Recommended stripped wire length: 10mm
● Dedicated tool: CT-1000

[Material/Finish]
●Copper
●Polypropylene

[Set contents/accessories]
-

【Note】
-
