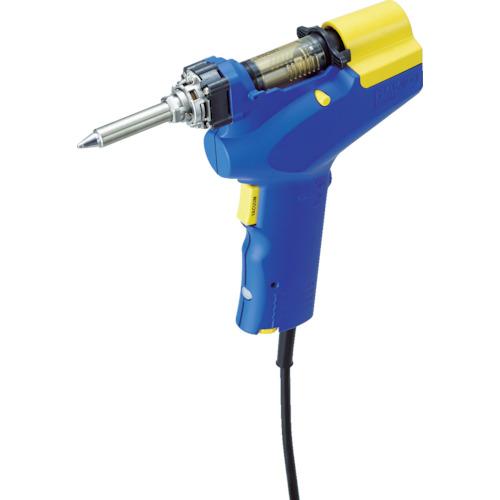

HAKKO FR301-82 100V 2-pole ground type with case

[Features] ● Designed for ease of use. ●Excellent operability and easy maintenance. ●Employs a unique sensor feedback system and is equipped with a high-precision temperature control function.

[Use]
-

[Specifications] ● Power supply (V): AC100 ● Power consumption (W): 98 ● Set temperature (°C): 350 to 500 ● Plug type: 2-pole grounded plug ● Vacuum generation method: Diaphragm pump ● Power cord length (m): 1.6 ●Standard nozzle: φ1.0mm

[Specification 2] Nozzle ground resistance (Ω): <2 Leakage voltage (mV): <2 Ultimate vacuum pressure: 81kPa Suction flow rate: 11L/min Heater: Ceramic heater Power cord length: 1.6m ●RoHS2 compliant products (10 substances)

[Material/Finish]
-

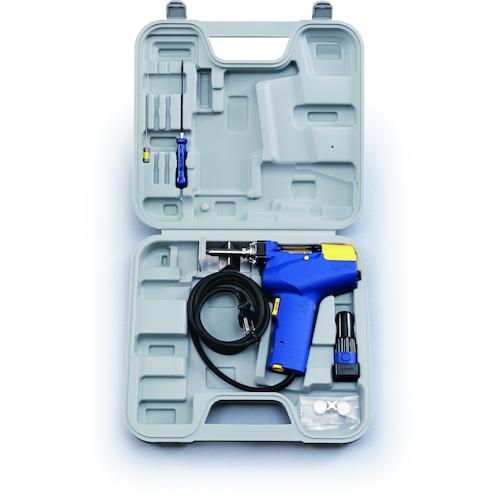

[Set Contents/Accessories] ●Blotter FR-301 (N61-08 with nozzle φ1.0) ●Cleaning pin (for nozzle Φ1.0 and heating core) ●Ceramic paper filter L (2 pieces) ●Simple iron stand Pre-filter Nozzle wrench

【Note】
-
