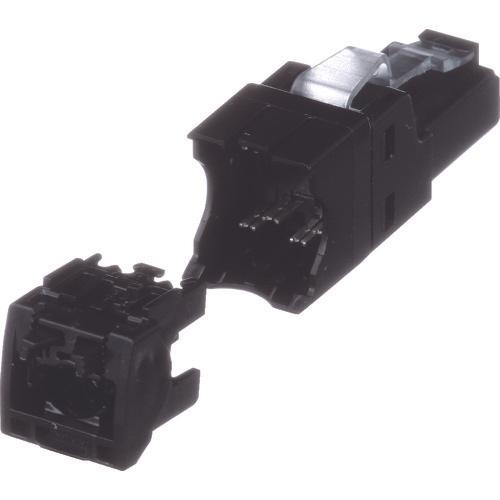

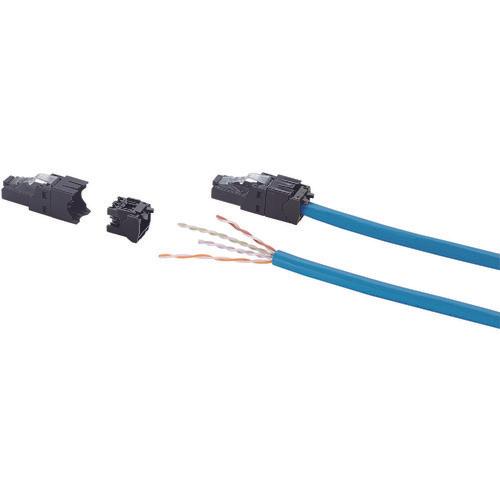

[Features]● Easy termination with a two-piece structure housing and simple tools, not only shortens construction time, but also provides uniform quality and performance after construction. ●Can be re-terminated up to 20 times. ●The same termination method as the TG style jack is used to achieve high performance with easy termination.
[Applications] ● RJ45 modular plug compatible with CAT6A, CAT6, and CAT5e. ●POE++ compatible, ideal for IP cameras and access points.
[Specifications] ●Type: Category 5e/6/6A ●Color: Black/Blue ●Compatible cable: 5.08-8.38mm UTP cable ●Type: 22-26 AWG solid wire, stranded wire ●Operating temperature range (°C): -10 to 65℃
[Specification 2] ● Conductor outer diameter: 22-26 AWG stranded wire and solid wire ● Insulator outer diameter: maximum φ1.52 mm ● Coating diameter: φ5.08 mm to φ8.38 mm ● Operating temperature range: -10 to 65°C ● Caulking tool unnecessary
[Material/Finish] ●Polycarbonate
[Contents of set/accessories] Termination support tool: EGPT, EGJT-1
