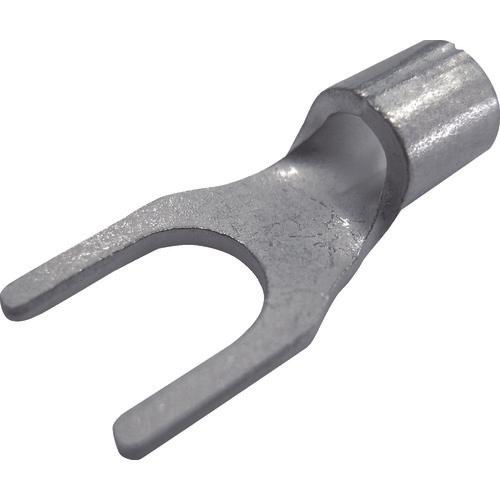

DST bare crimp terminal square tip open type terminal F1.25-C3.5 100 pieces

[Features]

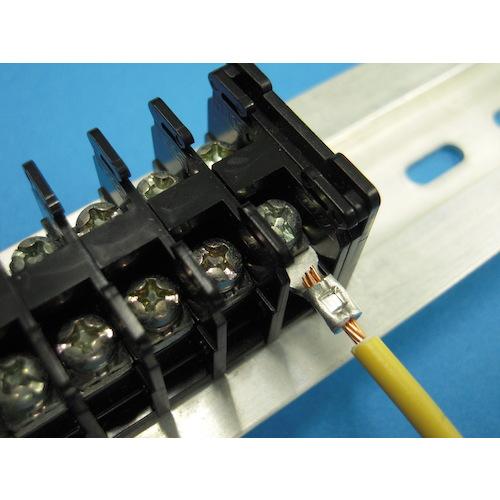

●A bare crimp terminal that has an open mounting hole on one side of the contact surface (tongue) and can be mounted without completely removing the screw.

[Use]
●For connection of annealed copper stranded wire or single wire.

【specification】
● Wire coupling range Stranded wire ([[MM2]]): 0.25 to 1.65
- Wire coupling range single wire (mm): 0.57 to 1.44
●Wire coupling range AWG: 22-16
- Stud diameter (mm): 3.7
- Total length (mm): 12.8
- Internal dimensions (mm): 1.7

[Specification 2]
●Y type

[Material/Finish]
●Terminal: Oxygen-free copper (C1020)/Electro-tin plating

[Set contents/accessories]
-

【Note】
-
