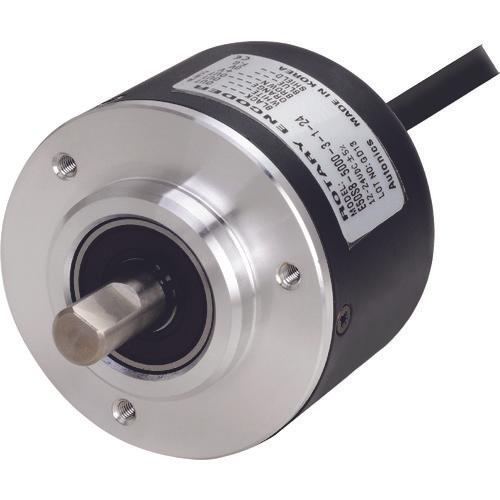

Autonics φ50mm shaft type incremental rotary encoder

[Features]
● Incremental rotary encoder with an outer diameter of 50φ.
●Ideal for angle, position, rotation speed, speed, distance measurement, etc.

[Use]
● For milling machine control and elevator door open/close position control.

【specification】
- Output format: Totem pole output
- Length (mm): 78.3
- Width (mm): 50
- Height (mm): 50

[Specification 2]
●Current consumption: 80mA or less (E50S8-L-5 type is 50mA or less)
- Shaft outer diameter: φ8 mm
●Cord length: 2m
Protection grade: IP50 (IEC standard)

[Material/Finish]
●Aluminum

[Set contents/accessories]
●φ8mm coupling
●Bracket

【Note】
-
