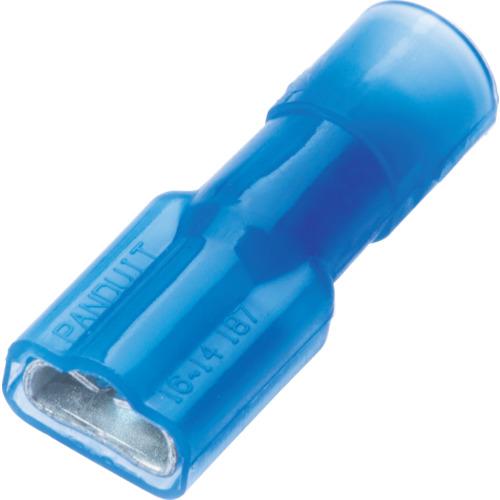

[Features]● Disconnect completely insulated with nylon, eliminating the need for an insulating cover such as a sleeve. ●There is an electric wire stopper in the barrel, and the electric wire can be inserted to the appropriate position.
[Applications] ●Mating copper wires.
[Specifications] ● Color: Blue ● Overall length (mm): 19.8 ● Tab size (mm): 5.2/4.75×0.8 ● Wire coupling range: Stranded wire mm [[square of]]: 1.5 to 2.5 ● Wire coupling range: AWG: 16 to 14 - Maximum insulation outer diameter: 4.1 mm - Tab size (mm): 5.2/4.75 x 0.8
[Specification 2] ● Maximum operating temperature: 105°C (indoor) ● Rated voltage: 600 V ● UL310 certified
