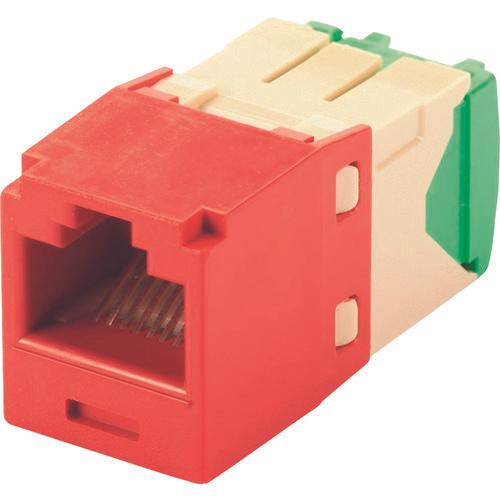

PANDUIT category 6 RJ45 modular jack UTP 28/30AWG TG type red CJT688TGRD

[Features] ● Designed to meet ANSI/TIA-568-C.2 Category 6 standards. ● 100% tested to ensure NEXT performance. ● Termination caps provide excellent strain relief, control cable bend radius and hold wires securely.

[Applications] ● For category 6 LAN wiring.

[Specifications] ● Type: UTP ● Length (mm): 15.87 ● Color: Red ● Width (mm): 38.16 ● Applicable cable: AWG28 single wire/AWG30 single wire ● Height (mm): 18.28 ● Category: Category 6 ● Operating temperature range (°C): -10 to 65

[Specification 2] ●Operating temperature range: -10 to 65°C ●Indoor use ●Insulator outer diameter: Φ0.635mm maximum ●Outer covering diameter: Φ3.046mm to Φ4.699mm Compatible twisted pair cable Conductor outer diameter: ΦAWG28 single wire/twisted wire, ΦAWG30 single wire

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
