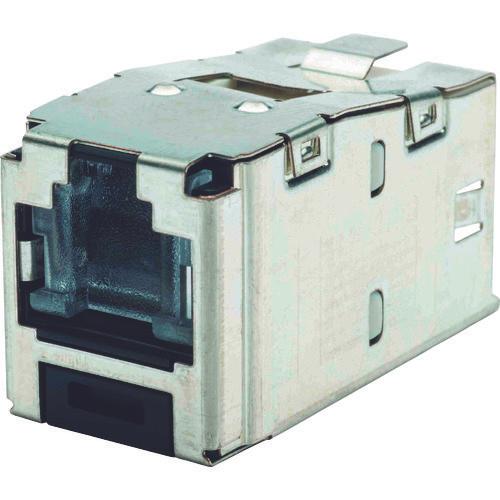

PANDUIT category 6 RJ45 modular jack shield TG type CJSH688TGY

[Features] ● Designed to meet ANSI/TIA-568-C.2 Category 6 standards. ● 100% tested to ensure NEXT performance. ● Termination caps provide excellent strain relief, control cable bend radius and hold wires securely. ●It is equipped with a shutter to prevent dust from entering when not in use.

[Use] ●For LAN wiring

[Specifications] ●Type: CAT6/shield ●Color: Silver ●Compatible cable: AWG22-26 single wire and stranded wire ●Width (mm): 18.77 ●Length (mm): 15.87 ●Height (mm): 38.13 ●Operating temperature Range (°C): -10 to 65

[Specification 2] - Outer diameter of insulator: maximum Φ1.52mm - Outer coating diameter: Φ5.08mm ~ Φ8.38mm - Termination tool: EGJT-1 (sold separately)

[Material/Finish]
-

[Set contents/accessories]
-

【Note】
-
