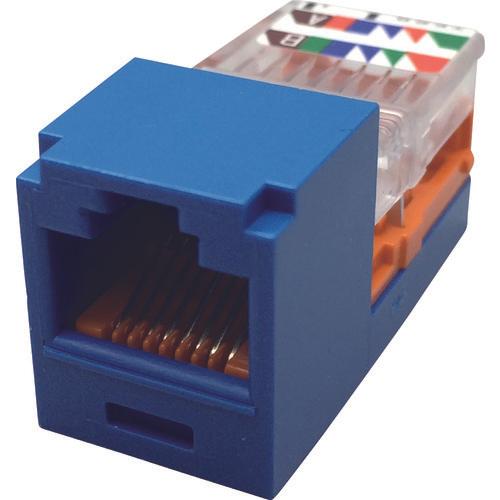

PANDUIT Category 5E Modular Jack Blue

[Features]● Prevents installation errors with a color code seal for identifying the wiring order of the cap. ●Single-wire cables of AWG22 to 24 can be terminated. ●The cap is removable and can be rewired up to 10 times. ●The structure keeps the untwisted length of the cable at 12.7mm.

[Use] ●Category 5E modular jack.

[Specifications] ●Color: Blue ●Applicable cable: Single wire of AWG22 to 24

[Specification 2] ● Twisted pair wire compatible with categories 3, 5, and 5e ● Conductor outer diameter: single wire from φ0.5mm (AWG24) to φ0.65mm (AWG22) ● Insulator outer diameter: from φ0.965mm φ1.2mm Outer coating diameter: Set UTP of φ5.8 mm or less

[Material/Finish] ● BS ●Synthetic resin ●Phosphor bronze ●Polycarbonate

[Set contents/accessories]
-

【Note】
-
