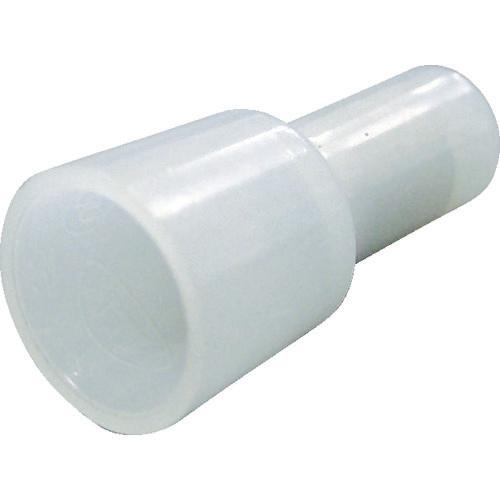

Nichifu closed end connector CE type with insulation coating (100 pieces included)

[Features] ● One side of the insulating coating is closed. ●This product complies with the RoHS Directive.

[Applications] ● For wiring in equipment by overlapping multiple wires.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 1.0 to 3.00 ● Overall length (mm): 21.0 ● R (mm): 7.3 ● E (mm): 9.6 ● Inner diameter (mm): 8 ● Rated Current (A): 12 ●Applicable tool: Closed end connector tool ●Wire coupling range AWG: 16-14

[Specification 2] ● JIS C2807 standard product ● Rated voltage: 300 V ● Color: milky white

[Material/Finish] Connector: Oxygen-free copper (C1020)/Electric tin plating Insulator: Nylon

[Set contents/accessories]
-

[Caution] ●Copper wire only. ●It is for internal use. It cannot be used for indoor wiring. ●Please use within the wire coupling range. ●Use as soon as possible after opening. ●Because it absorbs water, please be careful about storage.
